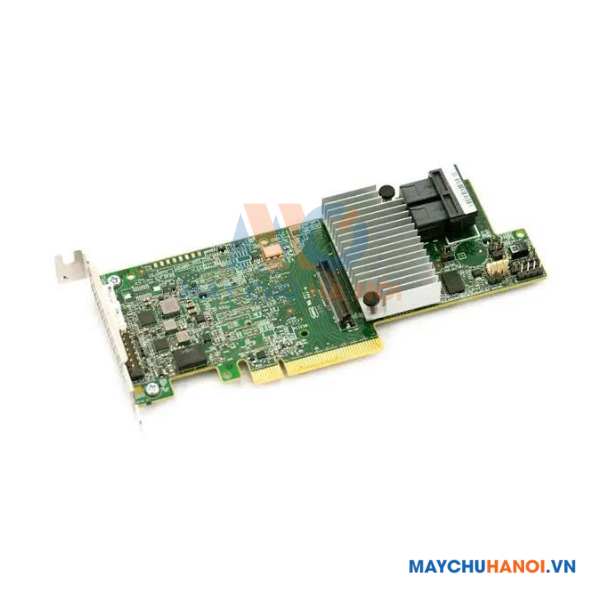

LSI MEGARAID SAS 9361-8I SPECIFICATIONS
| PRODUCT | MANUFACTURER PART # | WHAT’S IN THE BOX |
|---|---|---|
| MegaRAID SAS 9361-8i (1G) | 05-25420-08 | MegaRAID SAS 9361-8i, QIG, LP bracket |
| MegaRAID SAS 9361-8i (2G) | 05-25420‐17 | MegaRAID SAS 9361-8i, QIG, LP bracket |
| CacheVault LSICVM02 | 05-25444-00 | CacheVault Flash Module (CVFM04), CacheVault Power Module (CVPM02) with 3” cable, 10” and 24” remote cable extender, CVPM clip. |
| SPECIFICATION | VALUE |
|---|---|
| LIFECYCLE | Active |
| DISTRIB. INVENTORY | No |
| RAID-ON-CHIP CONTROLLER | LSISAS3108 dual core RAID on Chip (ROC) |
| WHAT’S IN THE BOX | MegaRAID SAS 9361-8i, QIG, LP bracket |
| GENERATION | 12 Gb/s |
| RAID MANAGEMENT SOFTWARE | LSA (LSI Storage Authority), MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure) |
| CACHE PROTECTION | Optional CacheVault Flash Module (LSICVM02) Includes CVFM04, CVPM02, mounting clip, and cable |
| PHYSICAL DIMENSIONS | MD2 Low profile (6.6″ x 2.536″) |
| HOST BUS TYPE | x8 lane PCI Express® 3.0 |
| CACHE MEMORY | 1GB or 2GB 1866MHz DDRIII SDRAM |
| INTERNAL PORTS | 8 |
| DATA TRANSFER RATES | Up to 12Gb/s per port |
| DEVICES SUPPORTED | Up to 240 SATA and/or SAS devices |
| INTERNAL CONNECTORS | 2 HD Mini-SAS SFF8643 (Horizontal mount) |
| MTBF | 1,343,187 hours |
| OPERATING TEMPERATURE | Maximum ambient: Controller Card with included CacheVault module: 55°C |
| OPERATING VOLTAGE (V) | +12V, +3.3V |
| OS | Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems |
| REGULATORY CERTIFICATIONS | Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), Japan (V-3/02.04), Safety: EN60950 |
| WARRANTY | 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
| DATA SHEET | AVG_Document_C:1211131969151 |
