Computer Connections | 2 |
Port Selection | Hotkey, Pushbutton, USB Mouse |
Connectors | |
Console Ports |
2 x USB Type A Female (Black) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x HDB-15 Female (Blue) |
KVM Ports | 2 x SPHD-18 Female (Yellow) |
Power | 1 x DC Jack |
Switches | |
Selected | 2 x Pushbutton |
LEDs | |
Online | 2 (Orange) |
Selected | 2 (Green) |
Emulation | |
Keyboard / Mouse | PS/2, USB |
Video | 2048 x 1536 @ 60 Hz; DDC2B |
Scan Interval | 3, 5, 10, 20 secs. (5 secs. default) |
Power Consumption | DC 5V, 1.1W |
Environmental | |
Operating Temperature | 0 – 50°C |
Storage Temperature | -20 – 60°C |
Humidity | 0-80% RH, Non-condensing |
Physical Properties | |
Housing | Metal |
Weight | 0.54 kg ( 1.19 lb ) |
Dimensions (L x W x H) | 14.00 x 8.80 x 5.55 cm (5.51 x 3.46 x 2.19 in.) |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |

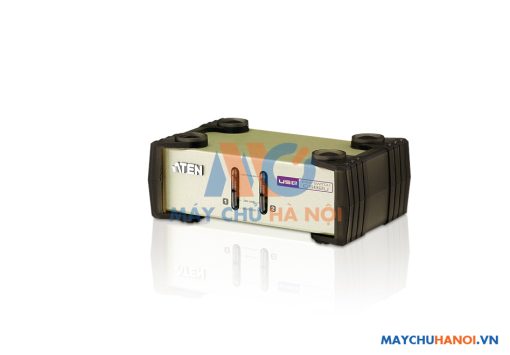

Aten CS82U PS/2-USB KVM Switch
