1. Giới thiệu Máy Chủ HPE ProLiant DL385 Gen11
Máy chủ HPE ProLiant DL385 Gen11 mới là một giải pháp 2U 2P được tối ưu hóa bằng máy gia tốc mang lại hiệu suất tính toán vượt trội, tốc độ truyền dữ liệu tốc độ cao được nâng cấp và độ sâu bộ nhớ ở khả năng tính toán 2P.
Được trang bị Bộ xử lý AMD EPYC™ 9004 Series thế hệ thứ 4 với tối đa 96 lõi, tăng băng thông bộ nhớ (tối đa 6TB), I/O PCIe Gen5 tốc độ cao, bộ lưu trữ EDSFF Gen5 và khung máy được thiết kế mới hỗ trợ 8 ổ đĩa đơn (SW) hoặc 4 GPU rộng gấp đôi (DW)*.
Máy chủ HPE ProLiant DL385 Gen11 là một giải pháp 2U 2P được tối ưu hóa cho máy gia tốc hoàn hảo.
2. Một số ưu điểm nổi bật, các nâng cấp mới nhất của Máy chủ DL385 Gen11
• Hỗ trợ Bộ xử lý dòng AMD EPYC™ thế hệ thứ 4 hỗ trợ tới 96 lõi, 400W và 384MB bộ nhớ đệm L3.
• 12 kênh DIMM trên mỗi bộ xử lý cho tổng bộ nhớ DDR5 lên tới 6TB1
• Tốc độ truyền dữ liệu nâng cao và tốc độ mạng cao hơn từ bus mở rộng nối tiếp PCIe Gen5
• Phần mềm quản lý máy chủ HPE Integrated Lights-Out 6 (iLO 6)
• Hỗ trợ cắm nóng, tùy chọn khởi động RAID M.2 khả dụng cao

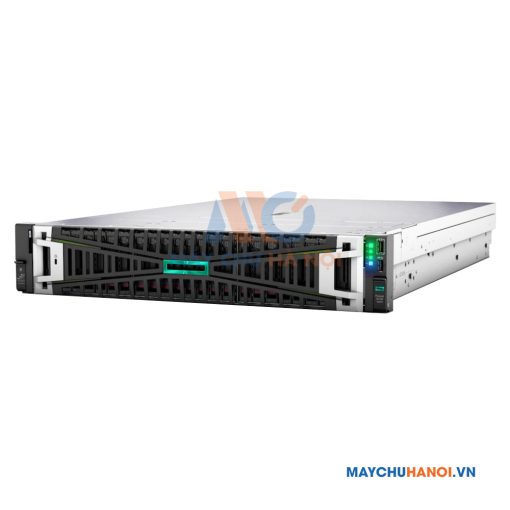

3. Thiêt kế mặt trước máy chủ HPE DL385 Gen11:
1. Quick removal access panel | 6. USB 3.2 Gen1 |
2. Power On/Standby button and system power LED button | 7. UID button |
3. Health LED | 8. Drive Bay 3. 8 SFF U.3 optional |
4. iLO front service port | 9. Drive Bay 2. 8 SFF U.3 optional |
5. NIC status LED | 10. Drive Bay 1. 8 SFF U.3 or Universal Media Bay optional Page 1 |
11. Serial label pull tag |
4. Thiêt kế mặt sau máy chủ DL385 Gen11:
1. Primary Riser: PCI Slots (Slots 13 top to bottom) | 6. HPE Flexible Slot power supply bay 1 |
2. OCP 3.0 Slot | 7. HPE Flexible Slot Power Supply bay 2 |
3. Secondary Riser: PCI Slots (Slots 4 – 6 top to bottom) | 8. VGA connector |
4. Tertiary Riser: (Slots 78 top to bottom, not shown). Optional rear 2 SFF cage | 9. Serial port (optional) |
5. Hot pluggable M.2 Boot Device (optional, not shown) | 10. Dedicated iLO management port |
11. USB 3.2 Gen1 ports |

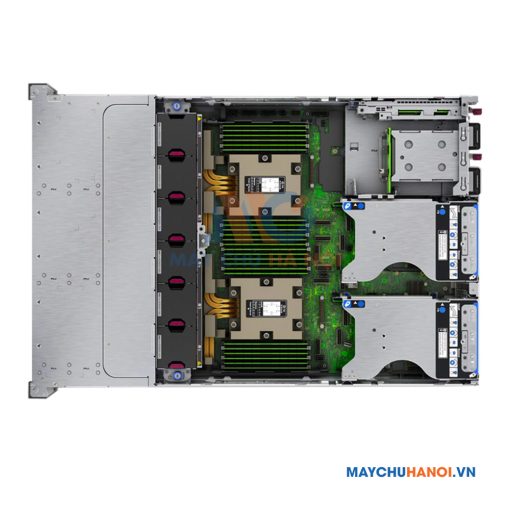

5. Thiêt kế bên trong máy chủ DL385 Gen11:
1. DDR5 DIMM slots. Shown populated in 24 slots | 6. (Under) OCP 3.0 Slot 2 |
2. Hot Pluggable M.2 Boot Device bracket | 7. Primary PCIe riser cage |
3. Up to 2 Hot Plug redundant HPE Flexible Slot Power supplies | 8. (Under) OCP 3.0 Slot 1 |
4. Rear 2SFF drive cage | 9. 2x USB 3.2 Gen1 ports (one under primary riser cage) |
5. Secondary PCIe riser cage | 10. Fan cage shown with 6 Performance Hot – plug fans |
11. 2 Processors (heatsinks shown) |
HPE ProLiant DL385 Gen11
Processor
Processor type: AMD
Processor family: 4th & 5th Generation AMD EPYC™ Processors
Processor number: Up to 2
Processor core available: Up to 160, depending on the processor
Processor speed: 5.0 GHz maximum, depending on the processor
Processor cache: 64 MB, 128 MB, 256 MB, 384 MB, 512MB or 1152 MB L3 cache, depending on processor model
Server Memory
Memory type: HPE DDR5 Smart Memory
Maximum memory: 6.0 TB with 256 GB DDR5
Memory slots: 24
Memory protection features: ECC
Server Cooling
System fan features: 6 fans included
Server Expansions
Expansion slots: 8 maximum, for detailed descriptions refer to the QuickSpecs
Server Form Factor
Form factor: 2U Rack
Server Controllers
Network controller: Choice of optional OCP plus standup, depending on model
Storage controller: HPE Tri-Mode Controllers, refer to the QuickSpecs for more detail
Server Drives
Drive supported: Up to 12 LFF SAS/SATA with 4 LFF mid drive optional, 4 LFF rear drive
Up to 24 SFF SAS/SATA/NVMe with 8 SFF mid drive optional and 2 SFF rear drive optional
Up to 48 SFF SAS/SATA with dual front drive cages
Up to 36 EDSFF
Server Power
Power supply type: 2 Flexible Slot power supplies maximum, depending on model
Management Software
Infrastructure management: HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced (require licenses) and HPE Compute Ops Management
Warranty
Warranty: 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of on-site support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at https://www.hpe.com/support.
6. Mua máy chủ HPE DL385 Gen11 ở đâu?
Máy Chủ Hà Nội là đối tác lâu năm và uy tín của HPE và các hãng CNTT khác trên toàn thế giới như Dell, Asus, Supermicro, Intel, AMD,…. Công ty Máy Chủ Hà Nội bán máy chủ HPE DL385 Gen11 với mức giá ưu đãi, cung cấp các sản phẩm máy chủ, máy trạm, linh kiện HPE với giá tốt, dịch vụ hậu mãi sau bán hàng.
Quý khách hàng có nhu cầu mua máy chủ, máy trạm, linh kiện vui lòng liên hệ với Phòng Kinh doanh của chúng tôi hoặc Liên hệ:
